Kingspan TP10 Thermapitch Roof Board 2400 x 1200 x 20mm

SKU: ITP10020
IDITP10020 Insulation > Multi Application Insulation > Rigid Board Insulation > Kingspan TP10 Thermapitch Roof Board 2400 x 1200 x 20mm

Pricing available upon sign in

Alternatively, contact a branch to order

Please sign in/register  to save items.

Product information

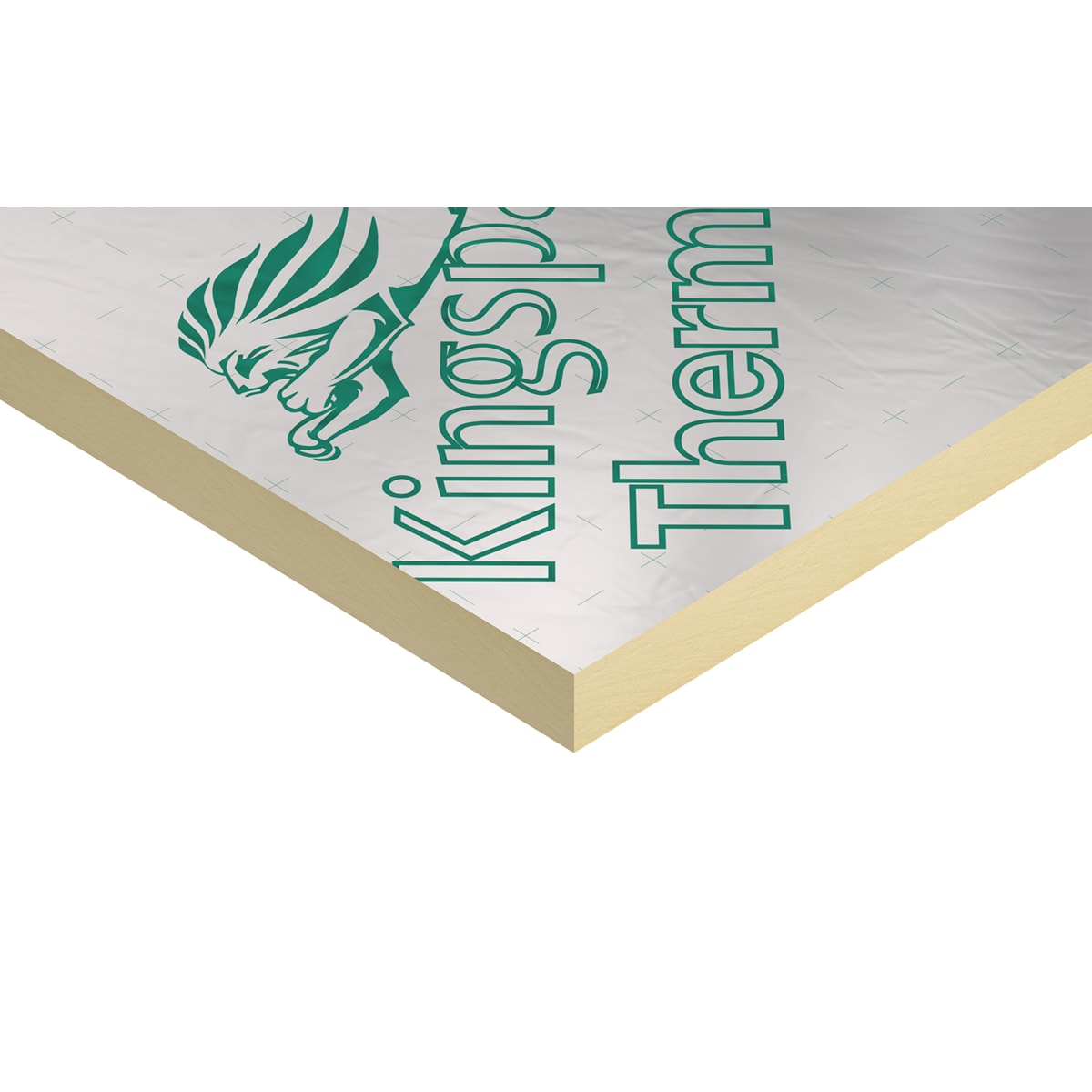

Kingspan TP10 Thermapitch Roof Board 2400 x 1200 x 20mm (L x W x T) Pack of 15 is a high performance insulation with a fibre-free rigid thermoset polyisocyanurate (PIR) core. It is suitable for tiled or slated pitched warm roof spaces, and has a thermal conductivity of 0.022 W/mK.

Features & benefits
  • High performance rigid thermoset polyisocyanurate (PIR) insulant manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)
  • Premium performance lower-lambda rigid thermoset phenolic insulation manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)
  • The product is easy to handle and for installation
  • Resistant to the passage of water vapour
  • Ideally suited for refurbishment and new build developments
Specifications
Product Name Kingspan TP10 Thermapitch Roof Board 2400 x 1200 x 20mm
Brand Kingspan
Manufacturer Name Kingspan Group
Compliance Approvals BS EN ISO 14001
Warranty Period 40  years
Materials Polyisocyanurate
Commercial Or Domestic Use Both
Range PIR Insulation Board
Application External
Fire Resistance Rating EN 13501-1 BS476
Pack Quantity 1
Country Of Origin Ireland
Applicable Standards ISO 9001
Finish Composite foil
Coverage 43.2  m2
Product Width 1200  mm
Product Weight 3.5  kg/m2
Product Length 2400  mm
Thickness 20  mm
Moisture Resistant Yes
Thermal Conductivity 0.022  W/mK
R Value 5.45  m2K/W
Compression Strength 140  kPa
