Celotex Cavity Wall Insulation Board 1200 x 450 x 85mm

SKU: CXCW4085
IDCXCW4085 Insulation > Multi Application Insulation > Rigid Board Insulation > Celotex Cavity Wall Insulation Board 1200 x 450 x 85mm

Pricing available upon sign in

Alternatively, contact a branch to order

Please sign in/register  to save items.

Product information

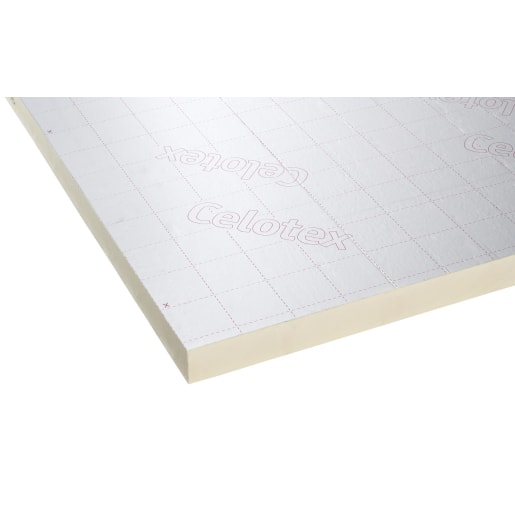

Celotex CW4000 range of PIR Insulation for Partial Masonry Cavity Walls CW4085 1200 x 450 x 85mm (L x W x T) 3.13kg/m2, 112 pieces per pallet is a high performance, easy to install polyisocyanurate (PIR) insulation board featuring a low emissivity foil facing. It is suitable for use in partial fill cavity wall applications. This board has a thermal conductivity of 0.022W/mK and aluminium foil facings, which has low emissivity on dual sides. Manufactured from rigid polyisocyanurate, it helps in improving thermal insulation performance within cavity air spaces.

Features & benefits
  • High performance facer
  • BRE Green Guide Rating of A, demonstrating its environmental performance in BREEAM applications
  • Excellent thermal performance
  • Lightweight and easy to install
  • BBA certified
Specifications
Product Name Celotex Cavity Wall Insulation Board 1200 x 450 x 85mm
Brand Celotex
Manufacturer Name Saint-Gobain
Manufacturer Part Number CW4085
Compliance Approvals CE Marked, BBA approved
Warranty Period 12  months
Materials Polyisocyanurate
Commercial Or Domestic Use Both
Range Cavity Insulation
Model Number CW4085
Application External
Fire Resistance Rating EN 13501-1 Class E
Pack Quantity 1
Country Of Origin United Kingdom
Applicable Standards BBA 16/5351 & 17/5405, BS EN 13165:2012 + A2:2016, ISO 14001:2015, CE Marked (18.DOPTB4000-01) to BS EN 13165
Coverage 3.78  m2
Recyclable Yes
Product Width 450  mm
Product Weight 3.13  kg/m2
Product Length 1200  mm
Thickness 85  mm
Thermal Conductivity 0.022  W/mK
R Value 3.85  m2K/W
Pallet Quantity 112
Product documents
