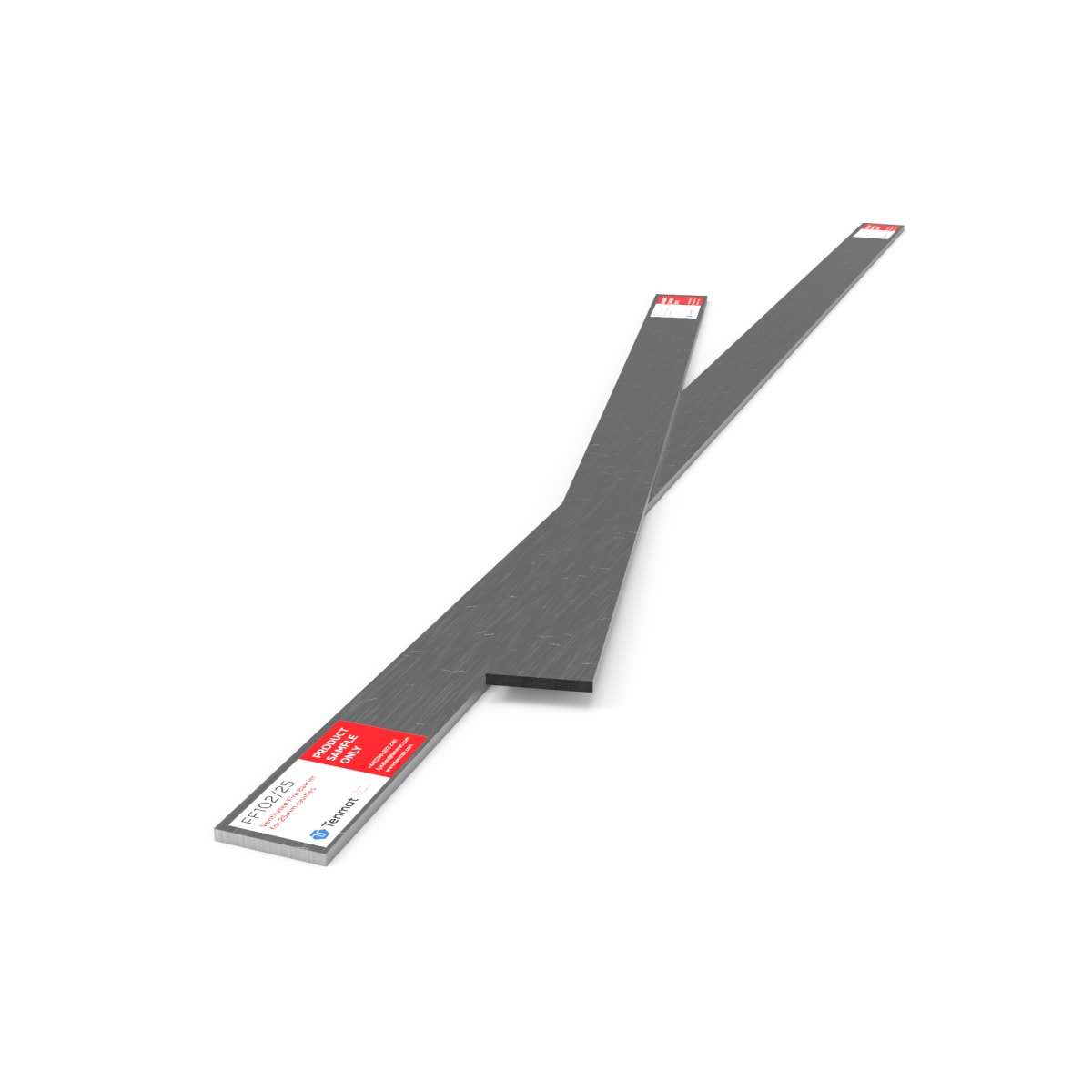

Tenmat FF102/25 Fire Cavity Barrier 4 x 35mm x 1m
SKU: IFF10225
The Tenmat FF102/25 Fire Cavity Barrier 4 x 35mm x 1m (T x W x L) is manufactured from low smoke zero halogen high expansion intumescent material and is designed to reinstate fire resisting performance to external wall cavities that are required to be ventilated (open-state) in non-fire conditions. The rigid intumescent material allows it to be provided in a strip format. It is also covered with a protective layer of aluminium foil for ease of handling and increased durability. In the event of a fire the FF102/25 intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for up to 60 minutes depending upon the construction of the external walls. The FF102/25 is designed for use within a designed 25mm cavity, and once installed will close the remaining free air gap (in front of the 4mm cavity barrier) of 21mm.
Features & benefits
- Acts as an external wall cavity barrier at the junction of compartment floors, within uninsulated cavities
- Tested and proven to reinstate the fire resistance performance within “open-state” external wall cavities for periods up to 60 minutes, for both integrity and insulation to the principles of EN 1363-1 and in accordance with ASFP TGD 19 guidance
- Ventilated design – developed to allow maximum ventilation of cavities reducing the need for cavity trays or weepholes
- Lightweight - designed to be easily and quickly installed
- No maintenance required after installation
IDIFF10225
Passive Fire Protection > Fire Stopping > Cavity Barriers, Fire Stops & Socks > Tenmat FF102/25 Fire Cavity Barrier 4 x 35mm x 1m
https://www.minsteronline.co.uk/p/tenmat-ff10225-fire-cavity-barrier-4-x-35mm-x-1m-IFF10225
The Tenmat FF102/25 Fire Cavity Barrier 4 x 35mm x 1m (T x W x L) is manufactured from low smoke zero halogen high expansion intumescent material and is designed to reinstate fire resisting performance to external wall cavities that are required to be ventilated (open-state) in non-fire conditions. The rigid intumescent material allows it to be provided in a strip format. It is also covered with a protective layer of aluminium foil for ease of handling and increased durability. In the event of a fire the FF102/25 intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for up to 60 minutes depending upon the construction of the external walls. The FF102/25 is designed for use within a designed 25mm cavity, and once installed will close the remaining free air gap (in front of the 4mm cavity barrier) of 21mm.
Features & benefits
- Acts as an external wall cavity barrier at the junction of compartment floors, within uninsulated cavities
- Tested and proven to reinstate the fire resistance performance within “open-state” external wall cavities for periods up to 60 minutes, for both integrity and insulation to the principles of EN 1363-1 and in accordance with ASFP TGD 19 guidance
- Ventilated design – developed to allow maximum ventilation of cavities reducing the need for cavity trays or weepholes
- Lightweight - designed to be easily and quickly installed
- No maintenance required after installation
Specifications
| Product Name | Tenmat FF102/25 Fire Cavity Barrier 4 x 35mm x 1m |
| Brand | Tenmat |
| Manufacturer Name | Tenmat Ltd |
| Materials | Intumescent materials |
| Commercial Or Domestic Use | Both |
| Range | Thermal Cavity Barriers |
| Colour | Silver |
| Application | Exterior |
| Pack Quantity | 1 |
| Finish | Aluminium foil |
| Product Width | 35 mm |
| Product Length | 1000 mm |
| Thickness | 4 mm |
