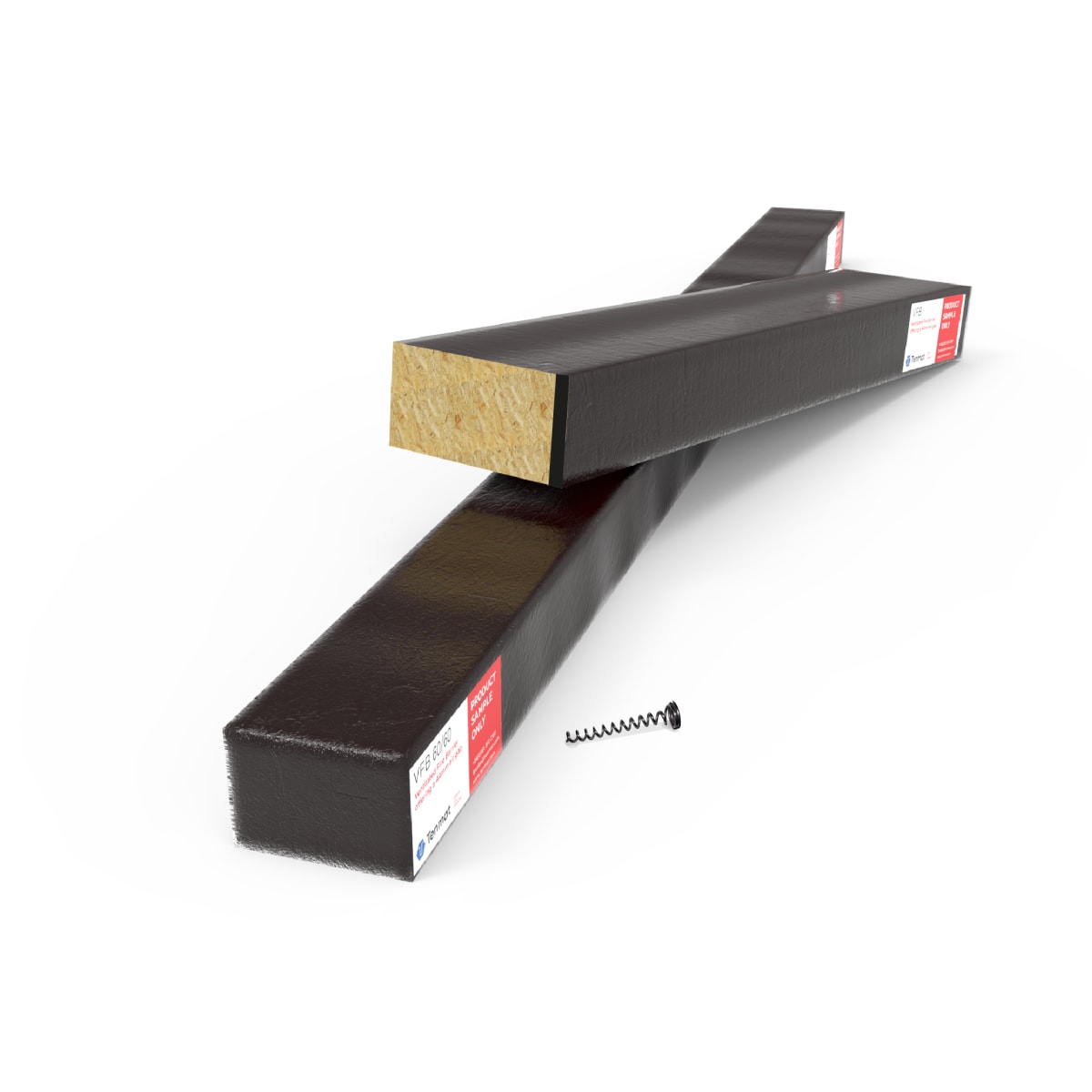

Tenmat 60/60 Ventilated Fire Barrier 1m x 75mm
SKU: IT107MP4
The Tenmat 60/60 Ventilated Fire Barrier (for cavity widths 25mm to 450mm) 1m x 75mm (L x W) is an ’open state’ cavity fire barrier for ventilated cavities of up to 450mm. Each VFB 60/60 consists of a specially formulated fire rated stone mineral wool section with an integral high expansion intumescent seal fixed to the leading edge. The VFB 60/60 then leaves a maximum 25mm air gap to allow for drainage and maintain ventilation in normal use. In a fire situation the intumescent seal rapidly expands to seal off the air gap and prevent vertical fire spread within the external wall.
Features & benefits
- 60 mins Integrity Fire Rating and 60 mins Insulation Fire Rating
- Maintains 25mm air gap
- Weatherproof
- Durability and age tested
IDIT107MP4
External Envelope > Facade Systems > Cavity Barriers > Tenmat 60/60 Ventilated Fire Barrier 1m x 75mm
https://www.minsteronline.co.uk/p/tenmat-6060-ventilated-fire-barrier-1m-x-75mm-IT107MP4
The Tenmat 60/60 Ventilated Fire Barrier (for cavity widths 25mm to 450mm) 1m x 75mm (L x W) is an ’open state’ cavity fire barrier for ventilated cavities of up to 450mm. Each VFB 60/60 consists of a specially formulated fire rated stone mineral wool section with an integral high expansion intumescent seal fixed to the leading edge. The VFB 60/60 then leaves a maximum 25mm air gap to allow for drainage and maintain ventilation in normal use. In a fire situation the intumescent seal rapidly expands to seal off the air gap and prevent vertical fire spread within the external wall.
Features & benefits
- 60 mins Integrity Fire Rating and 60 mins Insulation Fire Rating
- Maintains 25mm air gap
- Weatherproof
- Durability and age tested
Specifications
| Product Name | Tenmat 60/60 Ventilated Fire Barrier 1m x 75mm |
| Brand | Tenmat |
| Product Type | Cavity Fire Barriers |
| Manufacturer Name | Tenmat Ltd |
| Manufacturer Part Number | I107MP |
| Materials | Mineral wool |
| Commercial Or Domestic Use | Both |
| Colour | Black |
| Application | Ventilated cavities |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | EN 1363-1 |
| Product Width | 75 mm |
| Product Length | 1000 mm |
| Cavity Width | 450 mm |
