Gyproc ThermaLine PIR Board Tapered Edge 2400 x 1200 x 93mm

SKU: BGB28488
IDBGB28488 Drywall > Plasterboard > Specialist Plasterboard > Gyproc ThermaLine PIR Board Tapered Edge 2400 x 1200 x 93mm

Pricing available upon sign in

Alternatively, contact a branch to order

Please sign in/register  to save items.

Product information

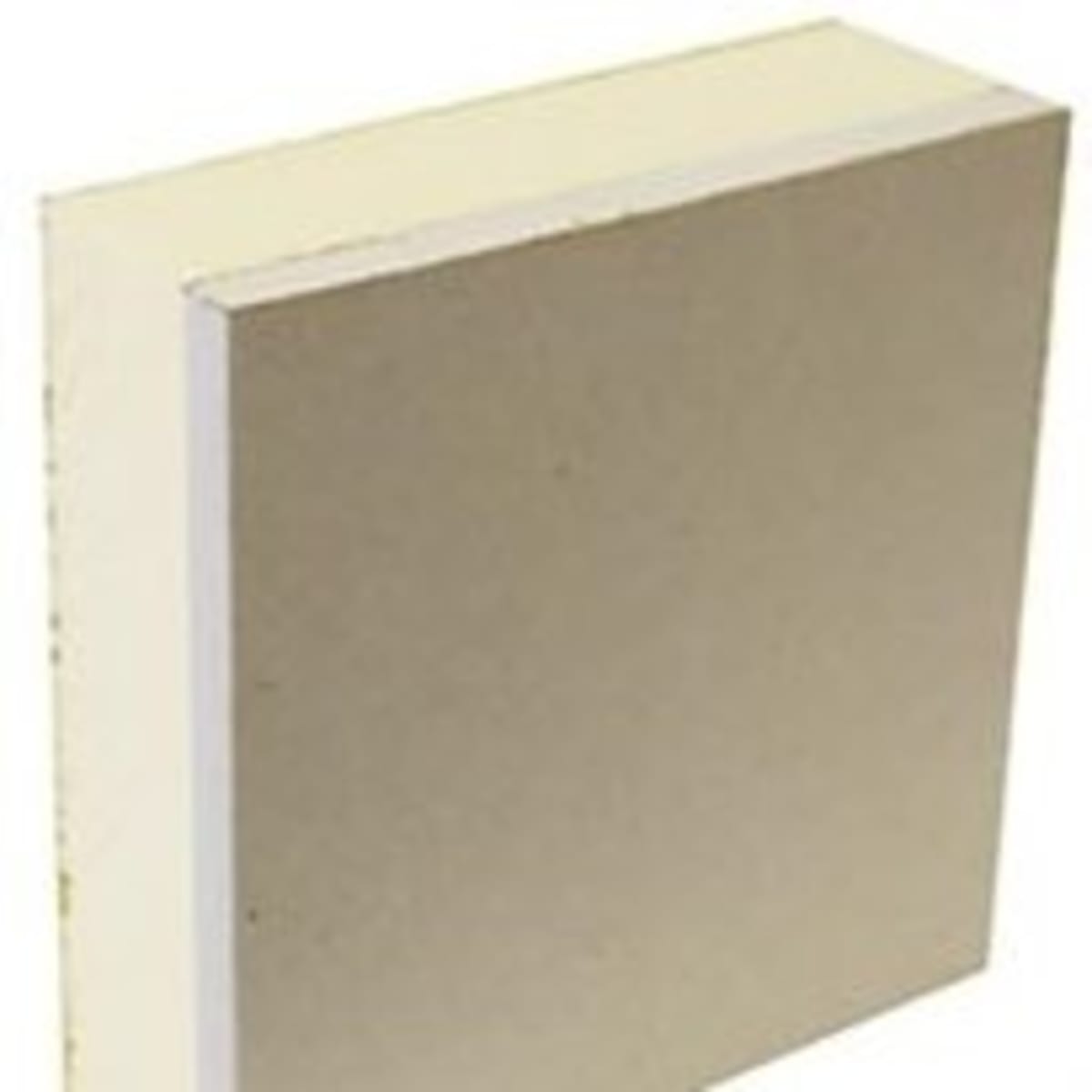

Gyproc ThermaLine PIR Tapered Edge 2400 x 1200 x 93mm (L x W x T) Gypsum plasterboard with integral vapour control layers for an advanced level of thermal insulation. 2.5mm Gyproc WallBoard bonded to CFC and HCFC-free meaning zero ODP (Ozone Depletion Potential), high performance polyisocyanurate foam insulant with two integral vapour control layers to reduce the risk of condensation. Designed to be used in both refurbishment and new build for walls, ceiling, room in the roof and window reveals where a high level of cost effective thermal insulation is required to reduce heat loss from buildings as part of our British Gypsum BBA approved systems.

Features & benefits
  • More insulating performance in a thinner board
  • Makes spaces more comfortable
  • Boosts property values by improving EPC ratings
  • Backed with pale yellow Polyisocyanurate foam with a 2 x vapour control barrier
  • Thermal Conductivity: Gyproc WallBoard 0.19W/mK and Polyisocyanurate foam 0.022W/mK
Product Name Gyproc ThermaLine PIR Board Tapered Edge 2400 x 1200 x 93mm
Brand Gyproc
Manufacturer Name British Gypsum
Manufacturer Part Number 28488/5
EAN 5015341284885
Compliance Approvals EN 13950, BS EN 520, EN 13165
Materials Gypsum
Polyisocyanurate Foam
Commercial Or Domestic Use Both
Range Thermal Insulated Board
Model Number 28488/5
Colour Ivory / Yellow
Application Interior/External
Fire Resistance Rating EN 13501; B-s1, d0
Pack Quantity 1
Country Of Origin United Kingdom
Applicable Standards ISO 9001, ISO 14001, OHSAS 18001, ISO 50001, BES 6001, BBA 13/5016
Recyclable Yes
Product Width 1200  mm
Product Weight 11.1  kg/m2
Product Length 2400  mm
Radius 93  mm
Thermal Conductivity 0.22  W/mK
R Value 3.65  m2K/W
