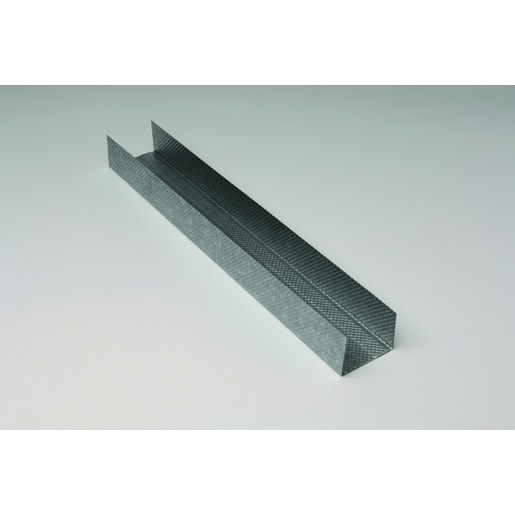

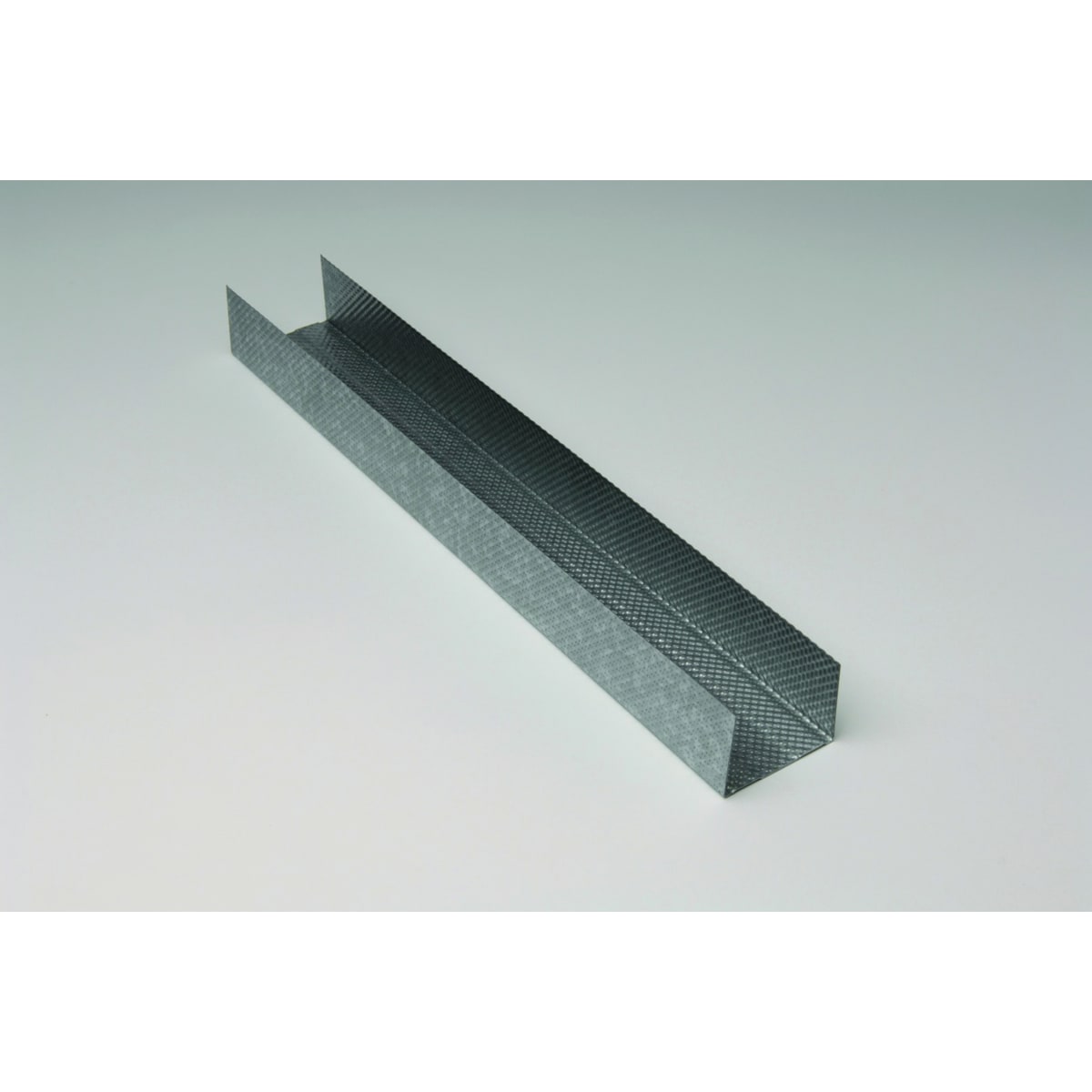

Gypframe Deep Flange Channel 3.6m x 62mm
SKU: PRMBG788
The Gypframe 62 DC 60 Deep Flange Channel 3.6m x 62mm (L x W) is used for securing wall studs at floor and ceiling junctions. Although Standard Folded Edge (FEC) channels are the most commonly used, Deep Flange (DC) and Extra Deep Flange (EDC) versions are available for partitions between 4200mm high and 8000mm high respectively, or in situations where deflection head details, improved impact resistance and easier skirting fixing is required. Conforms to EN 14195.
Features & benefits
- Used around openings and in deflection heads
- Accommodates Gypframe Retaining Clips / Channels and where applicable used around the perimeter in horizontal applications.
- Available for partitions between 4200 - 8000mm high
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Conforms to EN 14195
IDPRMBG788
Drywall > Drywall Metal Systems > Metal Wall Liner > Gypframe Deep Flange Channel 3.6m x 62mm
https://www.minsteronline.co.uk/p/gyproc-gypframe-deep-flange-channel-3600-x-62mm-chrome-PRMBG788
The Gypframe 62 DC 60 Deep Flange Channel 3.6m x 62mm (L x W) is used for securing wall studs at floor and ceiling junctions. Although Standard Folded Edge (FEC) channels are the most commonly used, Deep Flange (DC) and Extra Deep Flange (EDC) versions are available for partitions between 4200mm high and 8000mm high respectively, or in situations where deflection head details, improved impact resistance and easier skirting fixing is required. Conforms to EN 14195.
Features & benefits
- Used around openings and in deflection heads
- Accommodates Gypframe Retaining Clips / Channels and where applicable used around the perimeter in horizontal applications.
- Available for partitions between 4200 - 8000mm high
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Conforms to EN 14195
Specifications
| Product Name | Gypframe Deep Flange Channel 3.6m x 62mm |
| Brand | Gypframe |
| Manufacturer Name | British Gypsum |
| Manufacturer Part Number | 09309/8 |
| EAN | 5015341093098 |
| Compliance Approvals | EN 14195 |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Range | Deep Channels |
| Model Number | 09309/8 |
| Colour | Chrome |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Textured |
| Recyclable | Yes |
| Product Width | 62 mm |
| Product Weight | 1.75 kg/m |
| Product Length | 3.6 m |
