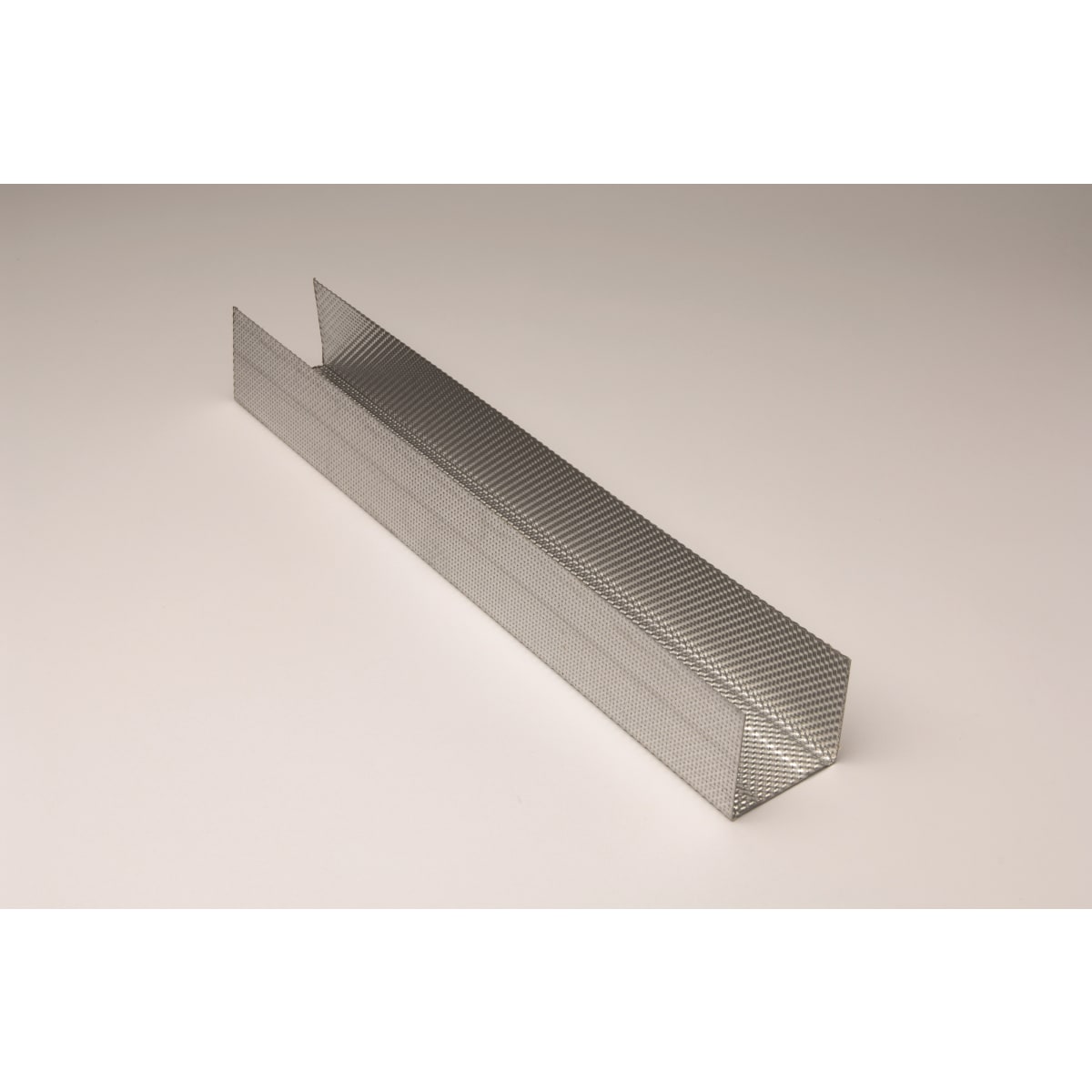

Gypframe Extra Deep Flange Channel 3.6m x 50mm
SKU: PRMBG792
Gypframe 50 EDC 70 Extra Deep Flange Floor & Ceiling Channel 3600 x 50mm (L x W) Metal floor and ceiling channels with extra deep flanges for retaining the Gypframe studs at floor and ceiling junctions for partitions over 8000mm high. Also used around openings and in deflection heads. Also accommodates Gypframe Retaining Clips / Channels and where applicable used around the perimeter in horizontal applications. Conforms to EN 14195.
Features & benefits
- Used for securing wall studs at floor and ceiling junctions
- Available for partitions over 8000mm high
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Used around openings and in deflection heads
- Conforms to EN 14195
IDPRMBG792
Drywall > Drywall Metal Systems > Metal Shaftwall > Gypframe Extra Deep Flange Channel 3.6m x 50mm
https://www.minsteronline.co.uk/p/gypframe-50-edc-70-extra-deep-channel-3600-x-50mm-PRMBG792
Gypframe 50 EDC 70 Extra Deep Flange Floor & Ceiling Channel 3600 x 50mm (L x W) Metal floor and ceiling channels with extra deep flanges for retaining the Gypframe studs at floor and ceiling junctions for partitions over 8000mm high. Also used around openings and in deflection heads. Also accommodates Gypframe Retaining Clips / Channels and where applicable used around the perimeter in horizontal applications. Conforms to EN 14195.
Features & benefits
- Used for securing wall studs at floor and ceiling junctions
- Available for partitions over 8000mm high
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Used around openings and in deflection heads
- Conforms to EN 14195
Specifications
| Product Name | Gypframe Extra Deep Flange Channel 3.6m x 50mm |
| Brand | Gypframe |
| Manufacturer Name | British Gypsum |
| Manufacturer Part Number | 09081/3 |
| EAN | 5015341090813 |
| Compliance Approvals | EN 14195 |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Range | Extra Deep Channels |
| Model Number | 09081/3 |
| Colour | Chrome |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Textured |
| Recyclable | Yes |
| Product Width | 50 mm |
| Product Weight | 1.06 kg/m |
| Product Length | 3.6 m |
