ARC Thermal Cavity Fire Barrier 125mm Party Wall 1200 x 250 x 140mm
SKU: IATPW125

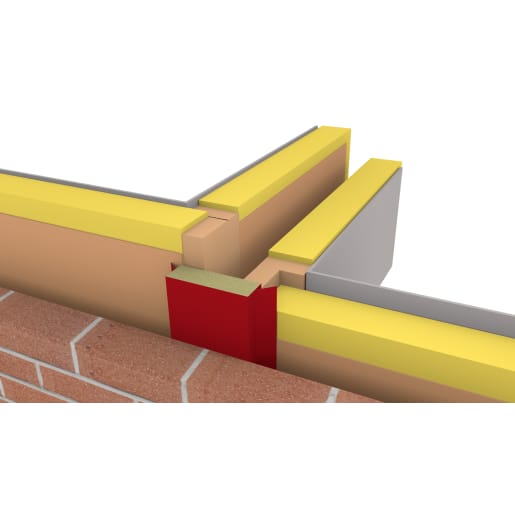

The ARC Thermal Party Wall Cavity (for 125mm timber to brickwork cavity) Fire Barrier 1200 x 250 x 140mm (L x W x T) White is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
IDIATPW125
External Envelope > Facade Systems > Cavity Barriers > ARC Thermal Cavity Fire Barrier 125mm Party Wall 1200 x 250 x 140mm
https://www.minsteronline.co.uk/p/arc-thermal-cavity-fire-barrier-125mm-party-wall-1200-x-250-x-140mm-IATPW125
The ARC Thermal Party Wall Cavity (for 125mm timber to brickwork cavity) Fire Barrier 1200 x 250 x 140mm (L x W x T) White is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
Specifications
Product Name | ARC Thermal Cavity Fire Barrier 125mm Party Wall 1200 x 250 x 140mm |
Brand | ARC |
Manufacturer Name | ARC Building Solutions |
Manufacturer Part Number | PWTCB125 |
Compliance Approvals | Certifire |
Materials | Rock fibre mineral wool |
Commercial Or Domestic Use | Both |
Range | Fire Barriers |
Colour | White |
Application | Interior |
Pack Quantity | 1 |
Country Of Origin | United Kingdom |
Product Width | 250 mm |
Product Weight | 1.59 kg |
Product Length | 1200 mm |
Thickness | 140 mm |
Thermal Conductivity | 0.037 W/mK |
Cavity Width | 125 mm |
