Actis Hybris Insulation Panel 1200 x 1145 x 105mm Pack of 4
SKU: IAPH105C
Roll over image to zoom in
Tap image to zoom in
IDIAPH105C
Insulation > Multi Application Insulation > Multi Foil Insulation > Actis Hybris Insulation Panel 1200 x 1145 x 105mm Pack of 4
https://www.minsteronline.co.uk/p/actis-hybris-insulation-panel-1200-x-1145-x-105mm-pack-of-4-IAPH105C
Pricing available upon sign in
Alternatively, contact a branch to order
Please sign in/register to save items.
Product information

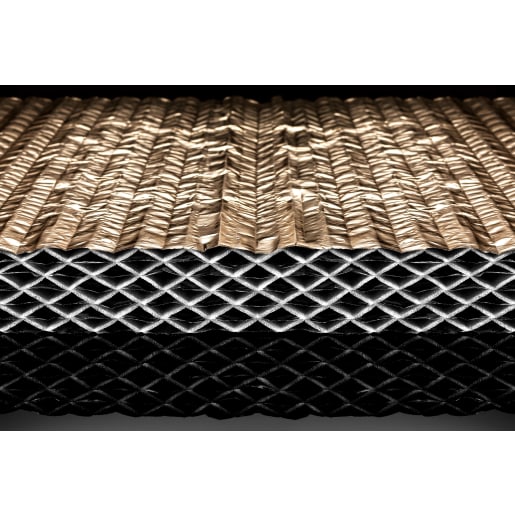

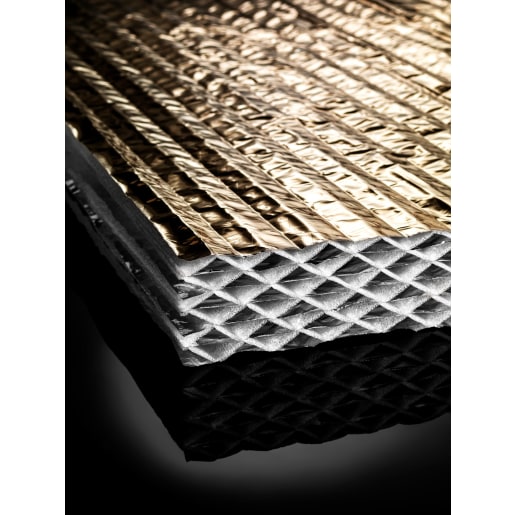

The Actis Hybris Insulation Panel is made of shaped polyethylene foams glued to aluminium coated polyethylene foils. The honeycomb structure composes of a large number of low emissivity cavities that ensure high thermal performance. The reflective insulation product has a heat capacity of 2300JK/kgK. The panels are used on timber frame, masonry walls, pitched roof, ceilings and loft applications. The hybris panels that are lightweight due to aluminium have a tensile strength greater than 45kPa before and after ageing in both longitudinal and transversal directions. The tensile strength is tested to EN 1608 and the tearing and nail shank resistance to EN 12310- 1 part 1.
Features & benefits
- No irritating fibres
- No settlement over time
- High acoustic performance
- Quick and easy to install
- Lightweight and easy to carry, transport and store
Specifications
| Product Name | Actis Hybris Insulation Panel 1200 x 1145 x 105mm Pack of 4 |
| Brand | Actis |
| Manufacturer Name | Actis |
| Manufacturer Part Number | H105C-UK-1200-1145 |
| EAN | 3570432248976 |
| Compliance Approvals | CE Marked |
| Materials | Polyethylene and Aluminium |
| Commercial Or Domestic Use | Both |
| Range | Insulation Panels |
| Model Number | H105C-UK-1200-1145 |
| Colour | Champagne |
| Application | Interior |
| Fire Resistance Rating | NPD |
| Country Of Origin | France |
| Applicable Standards | ISO 9001** EN 16012 |
| Finish | Smooth foil |
| Coverage | 5.49 m2 |
| Recyclable | No |
| Renewable | No |
| Product Width | 1145 mm |
| Product Weight | 5.7 kg |
| Product Height | 350 mm |
| Product Length | 1.2 m |
| Product Depth | 105 mm |
| Volume | 0.202 m3 |
| Thickness | 105 mm |
| Moisture Resistant | No |
| Thermal Conductivity | 0.033 W/mK |
| R Value | 3.15 m2K/W |
| Pallet Quantity | 17 |
